31.【J. Appl. Polym. Sci.】Effects of subphase pH and temperature on the interfacial behavior of double hydrophilic diblock copolymer PDEGMA-b-PDIPAEMA
作者：Jian Li, Gangyao Wen,* Dimitrios Selianitis, Stergios Pispas, Yu Zhang, and Hongfei Li.
關(guān)鍵字：Langmuir monolayer; LB film; double hydrophilic block copolymer; environmentally responsive polymer; subphase pH
論文來源：期刊
具體來源：J Appl Polym Sci. 2024, 141(5), e54898.
發(fā)表時(shí)間：2023年

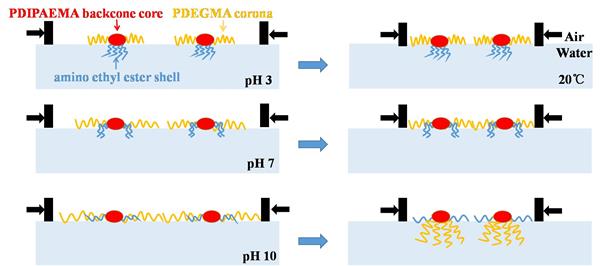

The aggregation behavior of two pH- and temperature-responsive diblock copolymers of poly[di-(ethylene glycol) methyl ether methacrylate]-block-poly[2-(diisopropylamino) ethyl methacrylate] (PDEGMA-b-PDIPAEMA) at the air/water interface and the structures of their Langmuir-Blodgett (LB) films were studied by the Langmuir monolayer technique and atomic force microscopy, respectively. At the air/water interface, PDEGMA-b-PDIPAEMA tends to form the core-shell-corona micellar structure composed of a PDIPAEMA main chain core, an amino ethyl ester shell, and a PDEGMA corona. Under acidic, neutral, and alkaline conditions, PDIPAEMA blocks are completely protonated, partially protonated, and completely non-protonated, respectively, and the protonated amino ethyl ester groups are immersed in water before monolayer compression, whereas PDEGMA coronas are adsorbed at the interface. At pH 3, 7, and 10, the limiting areas (A0) for PDEGMA42%-PDIPAEMA58% (weight percents) and PDEGMA55%-PDIPAEMA45% are 8.2/10.2/14.0 and 6.7/8.3/8.4 nm2, respectively. The A0 values of the former copolymer are larger than those of the latter. This is because the shells in the former copolymer are denser due to the higher polymerization degree of PDIPAEMA blocks, providing greater steric hindrance for PDEGMA coronas and making the latter more extended at the interface. In contrast to other copolymer systems, the effect of temperature on the isotherms of PDEGMA-b-PDIPAEMA is less obvious.
Article link: http://doi.org/10.1002/app.54898.
Read-only version: https://onlinelibrary.wiley.com/share/author/QKSVRWRPAN6DYVHXEQIJ?target=10.1002/app.54898
