[Journal of Membrane Science]Organic-inorganic composite membrane based on sulfonated poly (arylene ether ketone sulfone) with excellent long-term stability for proton exchange membrane fuel cells
writer：Jinsheng Li, Shuang Wang, Jingmei Xu, Lishuang Xu, Fengxiang Liu, Xue Tian, Zhe Wang
keywords：Ionic liquids,Organic-inorganic composite membranes,Long-term PWA-IL stability,Proton conductivity durability
source：期刊
specific source：Journal of Membrane Science
Issue time：2017年

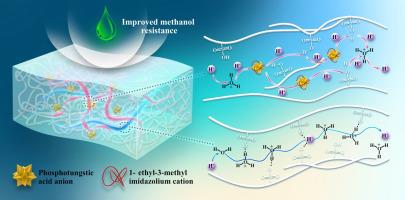

Organic-inorganic composite membranes based on sulfonated poly (arylene etherketone sulfone) (SPAEKS) and 1-ethyl-3-methyl imidazolium phosphotungstate (PWA-IL) have been prepared. PWA-IL with three imidazole cations per unit is prepared successfully through molecular modification of phosphotungstic acid withionic liquid (IL). The obtained PWA-IL is introduced into SPAEKS matrix aiming to enhance the proton conductivity and decelerate the leakage of ionic liquid. Fourier transform infrared spectroscopy (FTIR) and thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) and scanning electron microscope (SEM) are used to characterize and confirm the interaction between PWA-IL and SPAEKS. Higher degree of sulfonation benefits both dispersion and retention of PWA-IL in the SPAEKS matrix significantly. In particular, the obtained SPAEKS-80/PWA-IL membrane shows excellent long-term stability with 98.4% of PWA-IL residue after 132 h in water due to the intensely interaction between SPAEKS and PWA-IL. It is found that PWA-IL causes a higher IEC value, resulting in higher proton conductivity compared to pristine SPAEKS membranes. Simultaneously, the PWA-IL plays a positive role in improving methanol resistance. The individual membrane SPAEKS-80/PWA-IL exhibits good proton conductivity (0.127 S cm?1) under fully hydrated conditions at 80 °C.
